SKYLLA BATTERY CHARGER – microprocessor control

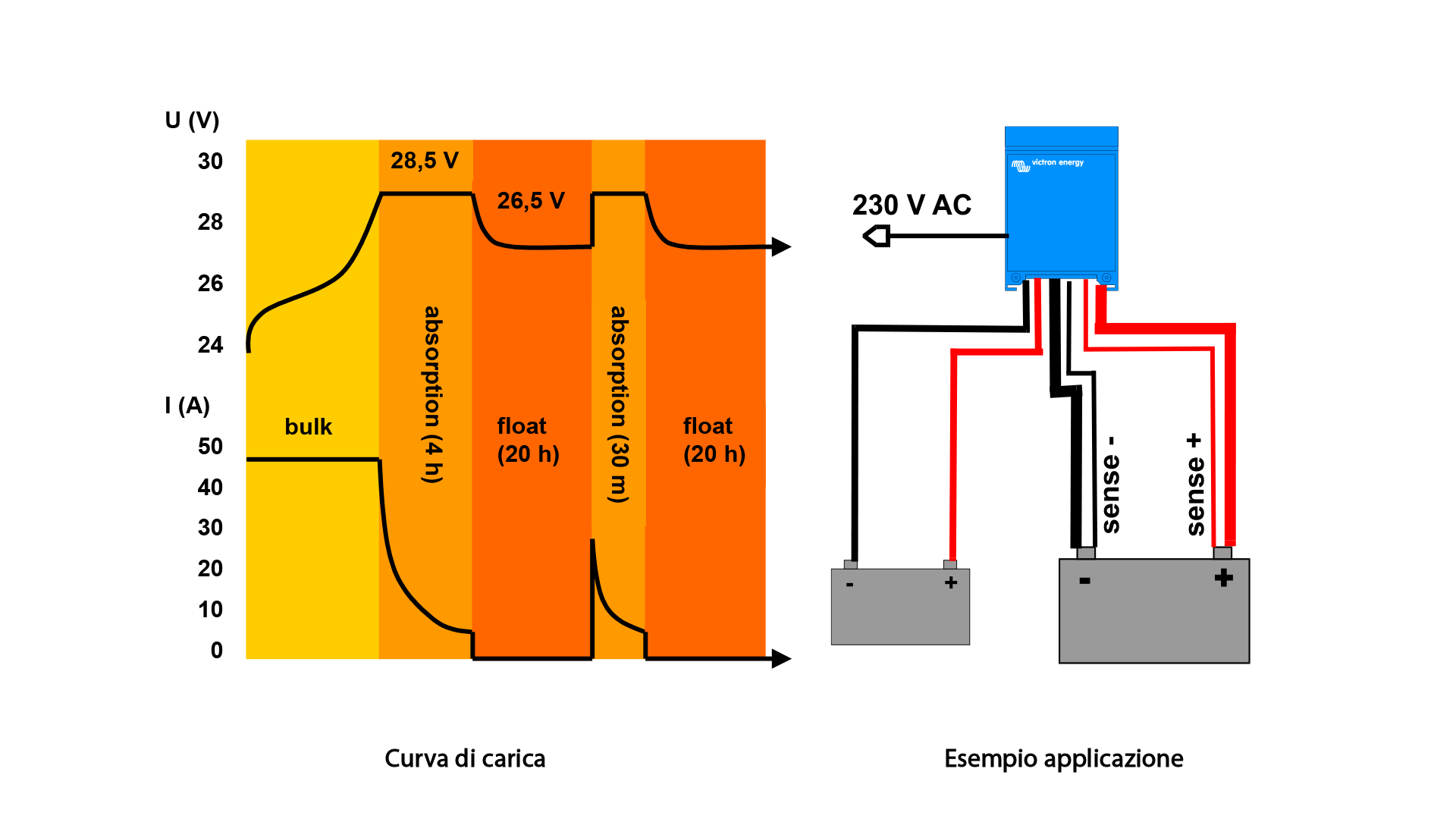

Skylla battery charger have automatic three stage IUoUo charging.
They are designed for use on battery banks with 24V DC / 48V DC.
They have two outputs, two full charge output and one output limited to 4 A.
Victron Skylla battery charger standard features
Aluminium epoxy powder coated case with drip shield, circuit board protection with an acrylic coating, built-in temperature sensors, forced
cooling, protection against output short circuit and over temperature, battery temperature sensor, compensation on cable voltage drop, feeder function.
| Label | Value |
|---|---|
| Warranty | 5 years |
SKYLLA TG BATTERY CHARGERS - models in comparison
| MODEL |
SKU |
INPUT VOLTAGE RANGE |
CHARGE VOLTAGE |
CHARGE CURRENT |
Ah BATTERIES |
DIMENSIONS |
WEIGHT |
|---|---|---|---|---|---|---|---|
|
TG 24/30 |
64904J |
185-265V AC / 45-65 Hz |
28.5 VDC |
30 A + 4 A |
150/300 |
365 x 250 x 147 |
5,5 |
|
TG 24/50 |
64905L |
185-265V AC / 45-65 Hz |
28.5 VDC |
50 A + 4 A |
250/500 |
365 x 250 x 147 |
5,5 |
|
TG 24/50 |
68895H |
320-450V AC / 45-65 Hz |
28.5 VDC |
50 A + 4 A |
250/500 |
485 x 250 x 147 |
13 |
|
TG 24/80 |
64906N |
185-265V AC / 45-65 Hz |
28.5 VDC |
80 A + 4 A |
400/800 |
365 x 250 x 257 |
10 |
|
TG 24/100 |
64907R |
185-265V AC / 45-65 Hz |
28.5 VDC |
100 A + 4 A |
500/1000 |
365 x 250 x 257 |
10 |
|
TG 24/100 |
64908T |
320-450V AC / 45-65 Hz |
28.5 VDC |
100 A + 4 A |
500/1000 |
515 x 260 x 265 |
23 |
|
TG 48/25 |
64909V |
185-265V AC / 45-65 Hz |
57 VDC |
25 A + 4 A |
125/250 |
365 x 250 x 147 |
5,5 |
|
TG 48/50 |
64910D |
185-265V AC / 45-65 Hz |
57 VDC |
50 A + 4 A |
250/500 |
365 x 250 x 257 |
10 |
