SOLAR WATER PUMPING SYSTEM PS2-100
READY TO USE HIGH EFFICIENCY SYSTEM
FEATURES
• Ready-to-use, cost-effective solar powered water pumping system.
• System supplied in a 600x160x230 mm (23.6“x6.3“x9”) box for easy storage and transport.
• Submersible pump equipped with helical rotor and high efficiency brushless DC motor.
• System includes pump unit, controller, cable with motor plug and the MC4 adapter cable.
• Connection on controller: PV power, pump, no-load protection, and float switch for overflow in tanks.
• The system is generally powered by a single PV module from 180Wp to 260Wp or two PV modules from 80W-180Wp in series. Higher powers are compatible.
• Application limits: maximum 40 m head2,8 m3/h flow rate.
SOLAR WATER PUMPING SYSTEM APPLICATIONS
With the PS2-100 system you can pump water from: wells, rivers, ponds or tanks.
PS2-100 is used to irrigate small property gardens; to supply water to livestock; to provide drinking water to homes and communities.
SOLAR WATER PUMPING SYSTEM OPTIONAL ACCESSORIES
They are all provided with connectors, ready to be connected to the controller or pump motor
• Probe for wells with 15 m cable – 23473B – Prevents the pump from idling
• Floating probe with 10 m cable – 23472Z – Controls the overflow of a tank
• 15 m extension for probe – 23466E – Provided with the waterproof connector
• 15 m extension for motor cable – 23471X – Provided with connector
| Label | Value |
|---|---|
| CONTROLLER | |
| Power | max. 0,15 kW |
| Input voltage | max. 50 V |
| Optimum Vmp | > 34 V |
| Motor current | max. 6,0 A |
| Efficiency | max. 98% |
| Ambient temperature | from -40 to +50°C |
| Enclosure class | IP68 |
| Dimensions mm (“) HxLxP | 29x122x115 (1.1x4.8x4.5) |
| Weight kg (lbs) | 0,7 (1.5) |
| MOTOR/PUMP | |
| Rated power | 0,15 kW |
| Efficiency | max. 83% |
| Motor speed | 700-2500 rpm |
| Insulation class | F |
| Enclosure class | IP68 |
| Submersion | max. 50 m |
| Pump dimensions mm (“) | P 455 (17.9), ø 88 (3.5) |
| Pump weight kg (lbs) | 5,5 (12.1) |

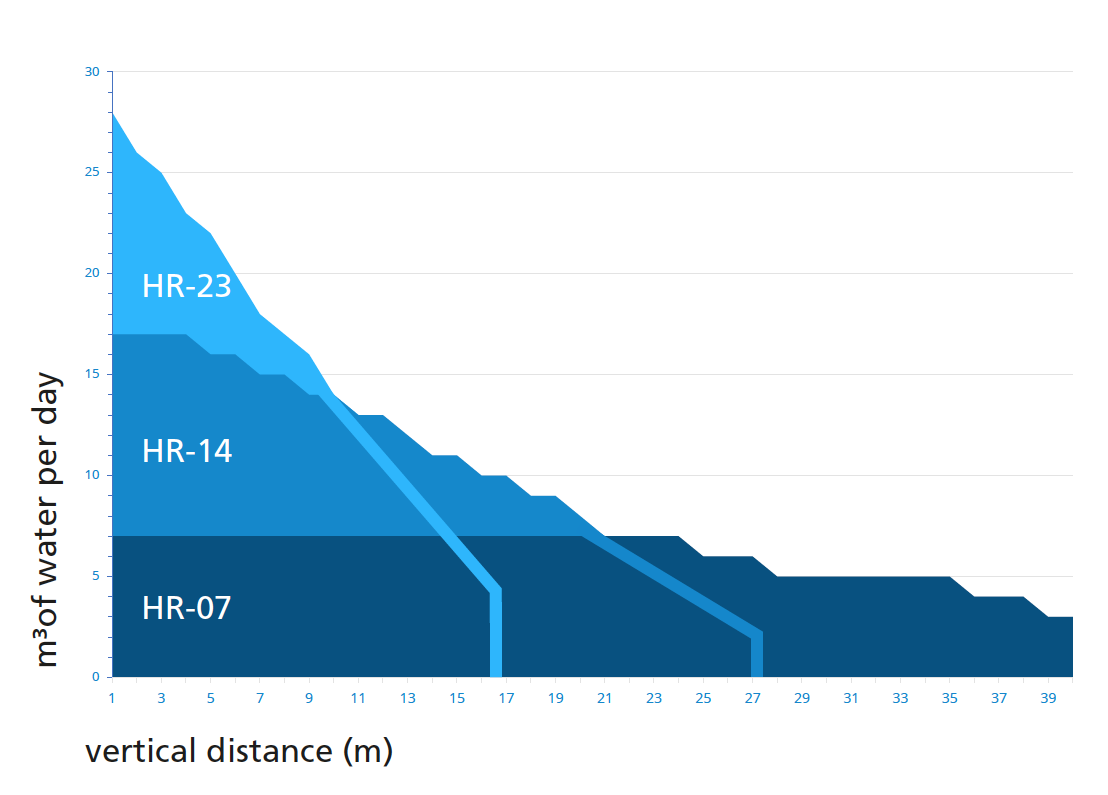

| MODEL |
DESCRIPTION |
|---|---|
|
PS2-100-07 |
Max 7 m³ of water per day - Max head 40 m |
|
PS2-100-14 |
Max 17 m³ of water per day - Max head 27 m |
|
PS2-100-23 |
Max 28 m³ of water per day - Max head 17 m |
