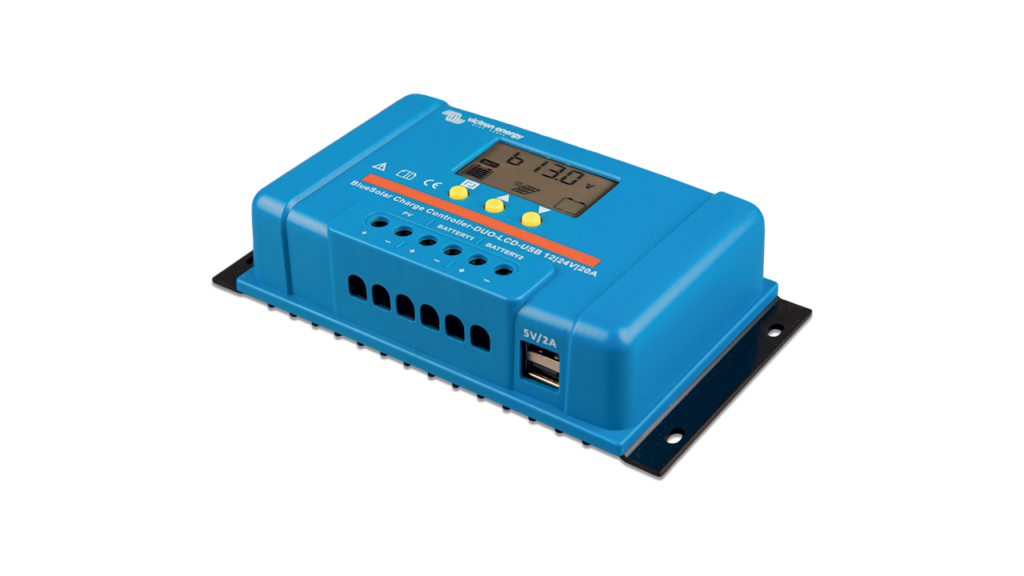

PWM CHARGE CONTROLLER
Programmable
The pmw charge controller BlueSolar PWM-Pro series is ready for use with its default settings.
It also is fully programmable with help of the dedicated BlueSolar Pro Remote Panel.
■ Low cost PWM controller
■ Lighting control function, fully programmable with the Remote Panel (optional) – 69450 X
■ Three stage battery charging (bulk, absorption, float), fully programmable with the Remote Panel (optional)
■ Integrated battery monitor function (Remote Panel needed to display state of charge)
■ Load output with low voltage disconnect and manual control (default setting)
■ Optional external temperature sensor – 69898 V
■ BlueSolar PWM Pro to USB interface cable – 60101 SA
■ Load output protected against over load and short circuit
■ Protected against reverse polarity connection of the solar panels and/or battery
■ Protection category: IP30
■ Certifications: IEC62103-1, EN61000-6-1, EN 61000-6-3, ISO 7637-2
■ Warranty: 5 years
| Label | Value |
|---|---|
| Self-consumption | <10mA |
| Operating temperature | -20 to + 50°C |
BLUE SOLAR PWM AND PWM-PRO CHARGE CONTROLLERS in comparison
| MODEL |
PWM-PRO |
PWM-PRO 12/24-20 |
PWM-PRO 12/24-30 |
|---|---|---|---|
|
SKU |
69446G |
69368N |
69452B |
|
Voltage |
12V 24V |
12V 24V |
12V 24V |
|
Rated load current |
10A 10A |
20A 20A |
30A 30A |
|
Maximum solar voltage |
28V 55V |
28V 55V |
28V 55V |
|
Low voltage load disconnect |
11,1V / 22,2V |
11,1V / 22,2V |
11,1V / 22,2V |
|
Low voltage load reconnect |
12,6V / 25,2V |
12,6V / 25,2V |
12,6V / 25,2V |
|
Dimensions mm (“) |
70 x 138 x 37 |
82 x 160 x 48 |
100 x 200 x 57 |
|
Weight kg (lbs) |
0,13 (0.3) |
0,3 (0.7) |
0,5 (1.1) |
