PURE SINE WAVE INVERTERS AJ SERIES
The AJ range consists of sine wave inverters that convert a battery’s DC voltage into AC voltage, which can be used by all electrical appliances.
■ Digital control by microprocessor, ensures high performance. The toroidal transformer and MOS power stage allow maximum efficiency
■ Steady output voltage: 230 V +/- 5%, 50 Hz +/- 0,05%
■ Available on request version with built-in charge controller
■ Protection against: short circuit, reverse polarity, overload, overheat and overcurrent

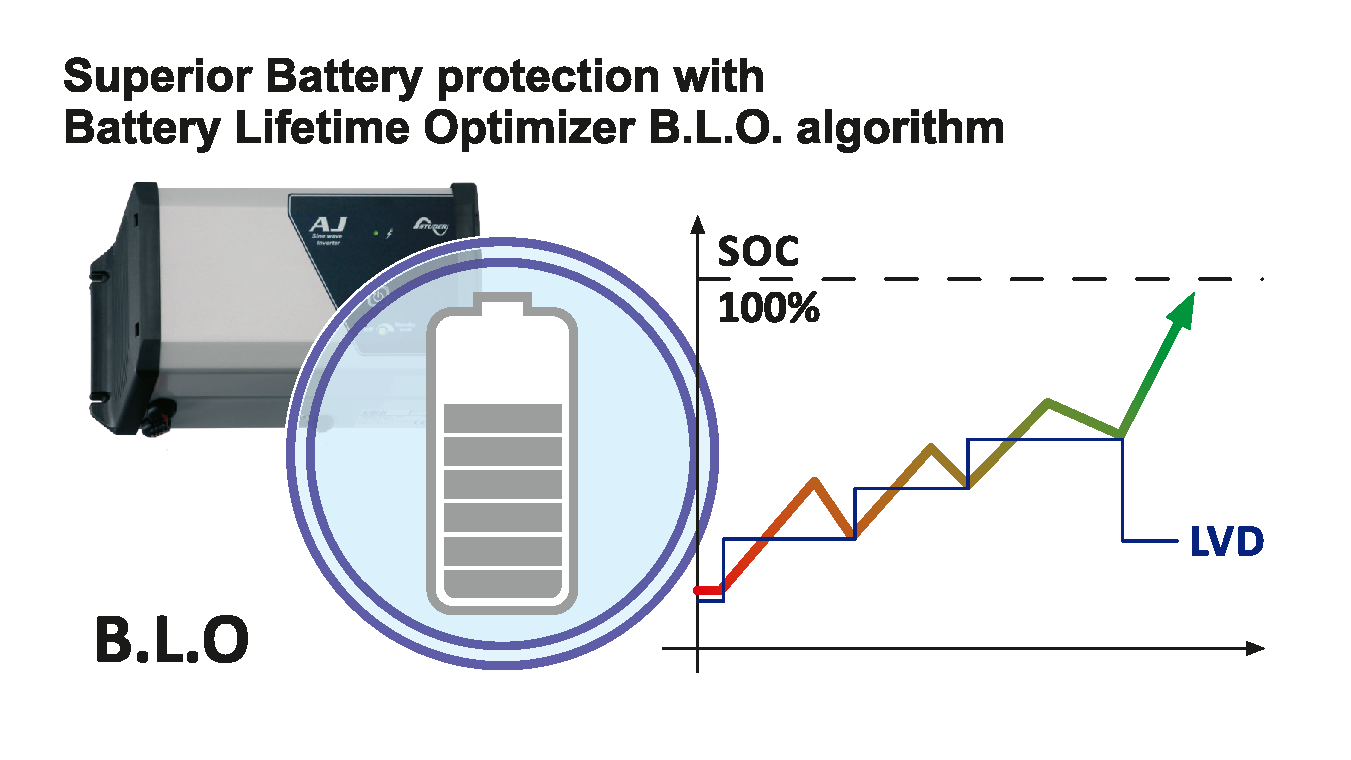

■ Automatic disconnect with alarm in case of low battery
■ IP 30 (IP 20 for AJ 2100-12 and AJ 2400-24)
■ High reliability, silent, complete with connecting cables
■ CE certified
■ WARRANTY: 5 years
No data found.
AJ 200 SERIES
| AJ 200 |
AJ200 275-12 |
AJ200 350-24 |
AJ200 700-48 |
|---|---|---|---|
|
SKU |
61845D |
61847H |
62979G |
|
Nominal voltage (V) |
12 |
24 |
48 |
|
Voltage range (V) |
10.5-16 |
21-32 |
42-64 |
|
Continuous power (VA) |
200 |
300 |
300 |
|
Power for 30 min – P30- (VA) |
275 |
350 |
300 |
|
Peak power for 5 s (VA) |
450 |
650 |
1000 |
|
Efficiency |
93% |
94% |
94% |
|
Stanby current draw (W) |
0.3* |
0.5* |
0.1* |
|
No load current draw (W) |
2.4 |
3.5 |
5.2 |
|
Polarity inversion protection |
60A |
40A |
25A |
|
Dimensions mm (“) |
142x163x84 |
142x163x84 |
142x163x84 |
|
Weight kg (lbs) |
2.4 (5.3) |
2.4 (5.3) |
2.6 (5.7) |
|
Charge controller (option S) |
10 A |
10 A |
10 A |
AJ400 SERIES
| AJ400 |
AJ400 500-12 |
AJ400 600-24 |
AJ400 700-48 |
|---|---|---|---|
|
Codice |
61849M |
61851Y |
62980R |
|
Nominal voltage (V) |
12 |
24 |
48 |
|
Voltage range (V) |
10.5-16 |
21-32 |
42-64 |
|
Continuous power (VA) |
400 |
500 |
500 |
|
Power for 30 min – P30- (VA) |
500 |
600 |
700 |
|
Peak power for 5 s (VA) |
1000 |
1200 |
1400 |
|
Efficiency |
93% |
94% |
94% |
|
Stanby current draw (W) |
0.4 |
0.6 |
1.5 |
|
No load current draw (W) |
4.6 |
7.2 |
12 |
|
Polarity inversion protection |
60A |
40A |
25A |
|
Dimensions mm (“) |
142x240x84 |
142x240x84 |
142x240x84 |
|
Weight kg (lbs) |
4.5 (9.9) |
4.5 (9.9) |
4.5 (9.9) |
|
Charge controller (option S) |
15 A |
15 A |
15 A |
AJ800 SERIES
| AJ800 |
AJ800 1000-12 |
AJ800 1300-24 |
|---|---|---|
|
Codice |
61853C |
61855G |
|
Nominal voltage (V) |
12 |
24 |
|
Voltage range (V) |
10.5-16 |
21-32 |
|
Continuous power (VA) |
800 |
1000 |
|
Power for 30 min – P30- (VA) |
1000 |
1300 |
|
Peak power for 5 s (VA) |
2200 |
2800 |
|
Efficiency |
93% |
94% |
|
Stanby current draw (W) |
0.7 |
1.2 |
|
No load current draw (W) |
10 |
13 |
|
Polarity inversion protection |
125A |
100A |
|
Dimensions mm (“) |
142x428x84 |
142x428x84 |
|
Weight kg (lbs) |
8.5 (18.7) |
8.5 (18.7) |
|
Charge controller (option S) |
25A |
25A |
AJ2000 SERIES
| AJ2000 |
AJ2000 2100-12 |
AJ2000 2400-24 |
|---|---|---|
|
Codice |
62981T |
62983X |
|
Nominal voltage (V) |
12 |
24 |
|
Voltage range (V) |
10.5-16 |
21-32 |
|
Continuous power (VA) |
2000 |
2400 |
|
Power for 30 min – P30- (VA) |
2100 |
2400 |
|
Peak power for 5 s (VA) |
5000 |
5200 |
|
Efficiency |
92% |
94% |
|
Stanby current draw (W) |
0.7 |
1.2 |
|
No load current draw (W) |
10 |
13 |
|
Polarity inversion protection |
No |
150A |
|
Dimensions mm (“) |
273x399x117 |
273x399x117 |
|
Weight kg (lbs) |
19 (41.9) |
18 (39.7) |
|
Charge controller (option S) |
25A |
30A |
