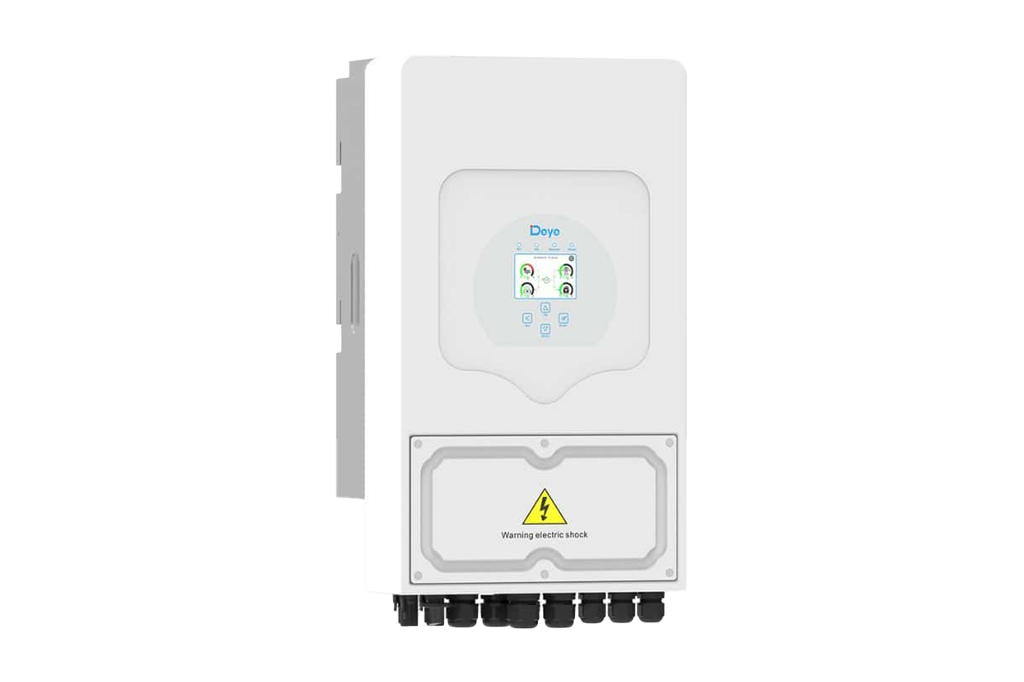

Deye single-phase offgrid/ongrid hybrid inverters
The Deye SUN-(3-6)K-SG05LP1 series is a versatile and robust single-phase hybrid inverter optimized for energy management in both residential and commercial applications. Designed to support a wide range of features, this series ensures seamless integration with existing solar systems and provides a future-proof energy solution with an advanced feature set.
- Optimized management of self-consumption
- CEI021 type A certificates
- Ease of installation
- Remote connectivity and monitoring
- Powering priority loads in backup
- Configurable to not feed energy into the grid
- High performance due to the use of supercapacitor storage units
No data found.
| Model |
HSR-3K-M |
HSR-6K-M |
|---|---|---|
|
Part n° |
24952V |
24953X |
|
Maximum DC input power (PV) |
3900 W |
7800 W |
|
MPPT voltage range |
150 V - 425 V |
150 V - 425 V |
|
MPPT minimum starting voltage |
125 V |
125 V |
|
Number of MPPT tracers |
2/1 +1 |
2/1 +1 |
|
Storage type |
SUPERCONDENSORS (Lead, Lithium) |
SUPERCONDENSORS (Lead, Lithium) |
|
Sirius supercapacitors parallelable |
1-8 |
1-8 |
|
Max.current DC charge/discharge (storage) |
70A/70A |
135A/135A |
|
Grid type |
Single-phase |
Single-phase |
|
Maximum AC output (storage) |
3300 W |
6600 W |
|
Interface and communication |
BMS |
BMS |
|
Dimensions WxHxD mm (") |
710x650x150 |
710x650x150 |
|
Weight kg (lbs) |
20,5 (45.2) |
20,5 (45.2) |
|
Operating temperature |
da -45 a 60°C |
da -45 a 60°C |
|
IP protection class |
IP65 |
IP65 |
|
Warranty |
5 years |
5 years |
|
Meter |
Single-phase included |
Single-phase included |
